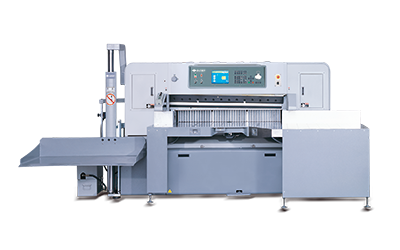

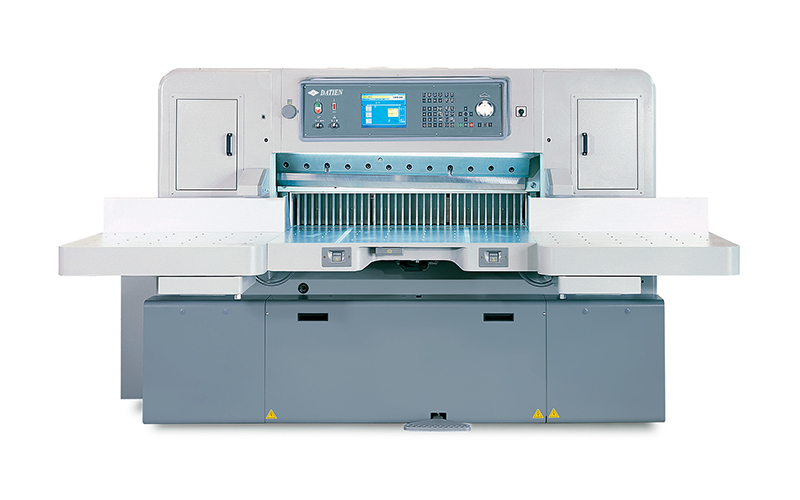

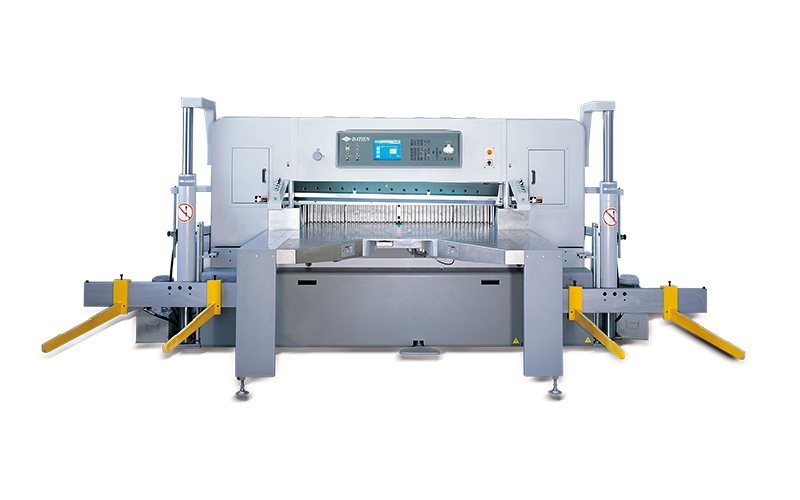

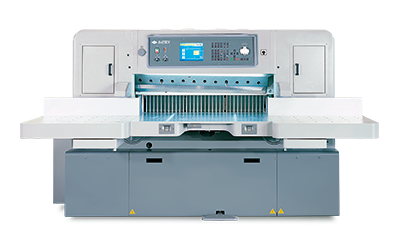

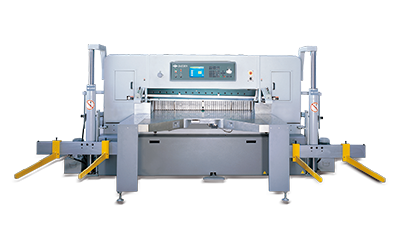

Computerized cutter

115 - 155 cm CT-115S CT-137S CT-155S

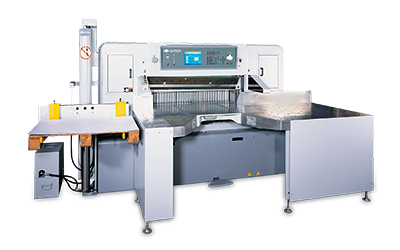

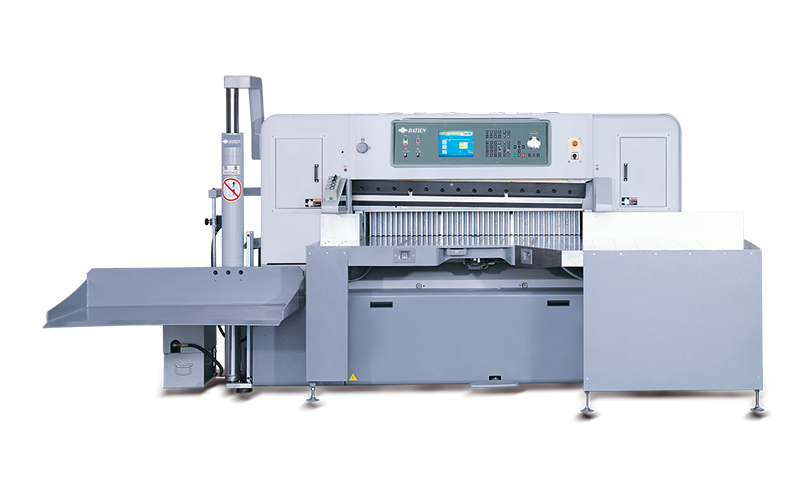

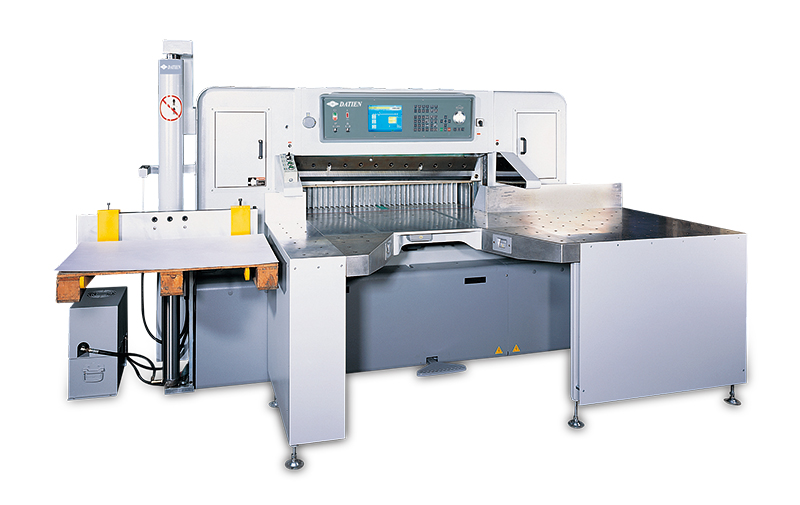

( Bigger air table is optional, standard size is 85 x 66 cm )

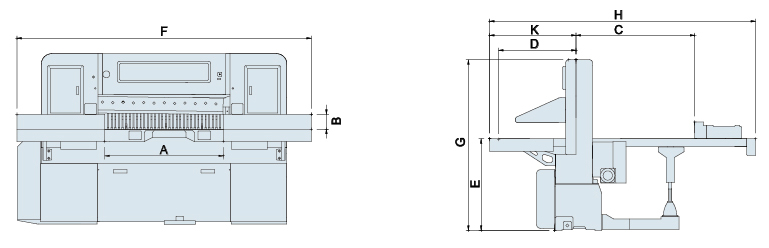

MODEL	CT-115S	CT-137S
	mm ( inches )	mm ( inches )
A Cutting Width	1150 ( 45.25 )	1370 ( 53.93 )
B Cutting Height	165 ( 63 )	165 ( 63 )
C Cutting Length	1150 ( 45.25 )	1370 ( 53.93 )
D Front Table Length	750 ( 29.5 )	750 ( 29.5 )
E Table Height	900 ( 35.4 )	900 ( 35.4 )
F Machine Width	2900 ( 114 )	3100 ( 122 )
G Machine Height	1680 ( 66 )	1680 ( 66 )
H Machine Length	2700 ( 106.3 )	2900 ( 114.2 )
K Machine Front Length.	890 ( 35 )	890 ( 35 )
Smallest Cut-with clamp	90 ( 3.54 )	90 ( 3.54 )
without clamp	30 ( 1.18 )	30 ( 1.18 )
Cutting Cycle Per Minute	48	48
Clamp Pressure	400 - 4000 kg ( 880 - 8800 Ib )	400 - 4000 kg ( 880 - 8800 Ib )
Net Weight	4100 kg	4500 kg
Main Motor	5.6 kW ( 7.5 HP )	5.6 kW ( 7.5 HP )
Backgauge Motor	0.5 kw ( 0.69 HP )	1 kw ( 1.34 HP )
Air Blower For Table	0.75 kw ( 1 HP )	0.75 kw ( 1 HP )
Power Requirement	6.85 kw ( 9.19 HP )	7.35 kw ( 9.84 HP )

※ Specification could be changed for improvement without prior notice.

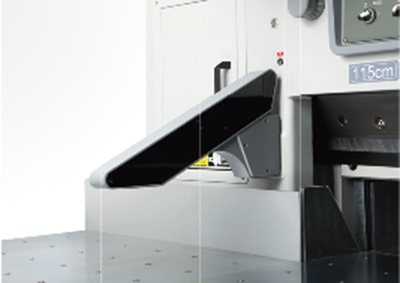

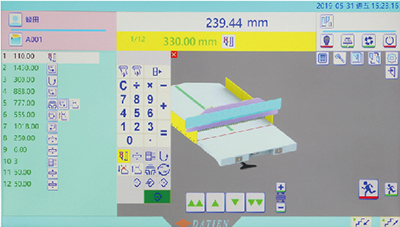

21.5" touch screen

• Use industrial computer to control.
• Support multiple languages, and can input in Chinese, English or handwriting.
• Gtaphical operation interface.
• Automatic notification for periodic maintenance.
• With computer function and optional functions such as isometric, cutting label, cutting memory, paper pushing and air supply, etc.
• Cutsomer name and bill name can be entered in Chinese or English or handwritten and quick query.
• 1000 groups of customer names, a total of 100,000 programs can be set.
• AC servo control system, locating accuracy of the back-gauge +/- 0.01, total tolerance 0.02mm.

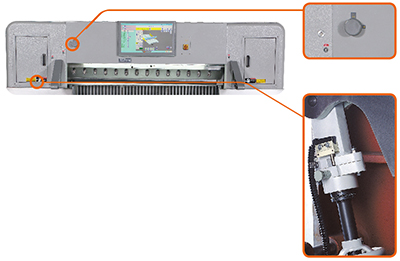

Blade calibration

Quick blade calibration can effectively control the left and right and depth of the blade.

Double blade drive arms

This machine is designed to use a double blade drive arms system which has an advantage of high speed, accurate, consistent and durable.

Clamp pressure adjustment wheel

Put by the operating panel, so the operator could watch the pressure level and pressure regulation easily.

Blade drive arms overload device

The blade drive arms are protected by a pair of shear bolt and a micro switch. When the blade cuts very hard object, the shear bolts will be broken and disconnect the blade drive arm. At the same time the micro switch signals the computer to stop the cutting cycle to prevent the machine from a severe damage.

Safety light curtain

In line with EU protection norms of CE4 level, it is built with 20 groups of sensors inside to provide tight security protection for operator.

Work table protection

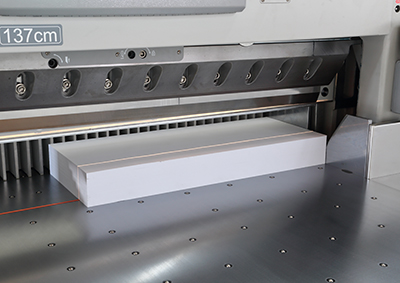

Underneath rear baffle plate arrange the fiber reinforced plastics protection to prevent scratching the work table. There will be no more paper jams, pushing feeding paper peerlessly smooth.

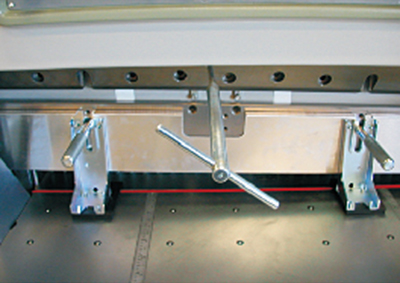

Mechanical blade lifting device

A mechanical blade lifting device makes every blade change safe and effortless.

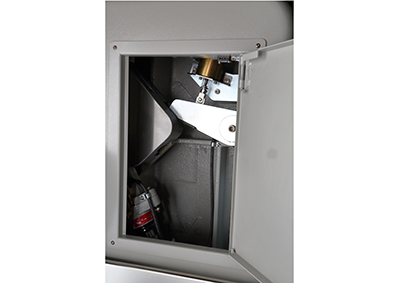

Safety latch for blade carrier

A mechanical safety latch is equipped on the blade carrier to protect the operator from any accidental cutting due to electrical malfunction.

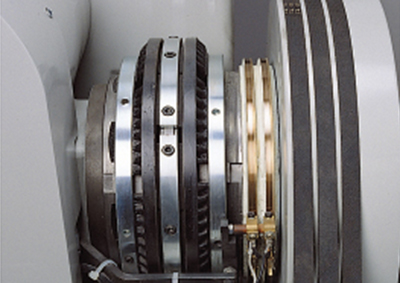

Powerful electromagnetic brake- clutch

This powerful electromagnetic clutch meets the specifications of European CE mark. This clutch delivers one hundred percent power and requires minimal maintenance.

Table slot cover

The table slot is covered by a belt. This belt prevents paper trapping and protects the backgauge lead screw from paper dust and debris.

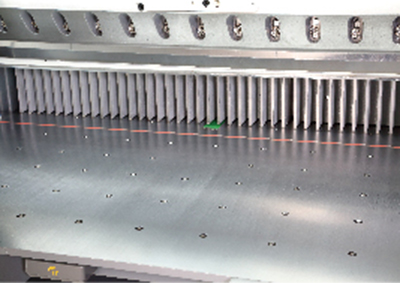

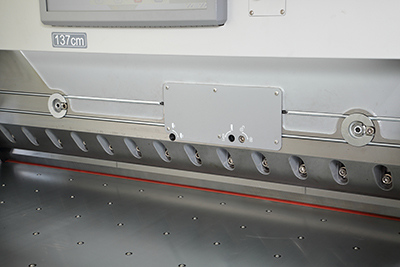

Optical cutting line

This optical line correctly indicates cutting position.

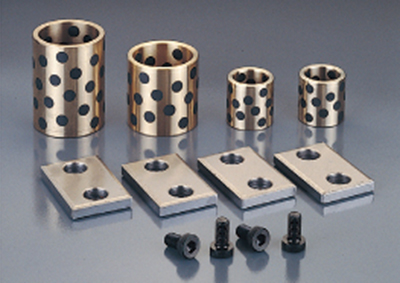

Oil-less bushing & abrasionproof bearing pleate

This optical line correctly indicates cutting position.

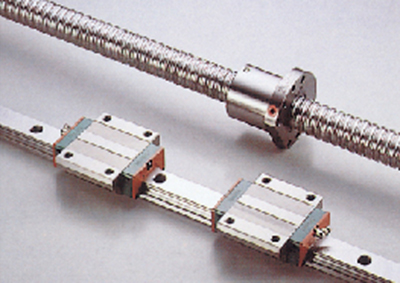

Ball bearing lead screw & linear bearing slide-rail

Precision ball bearing lead screw and linear bearing slide rails are used on the backgauge drive system to provide a smooth and sensitive motion.
