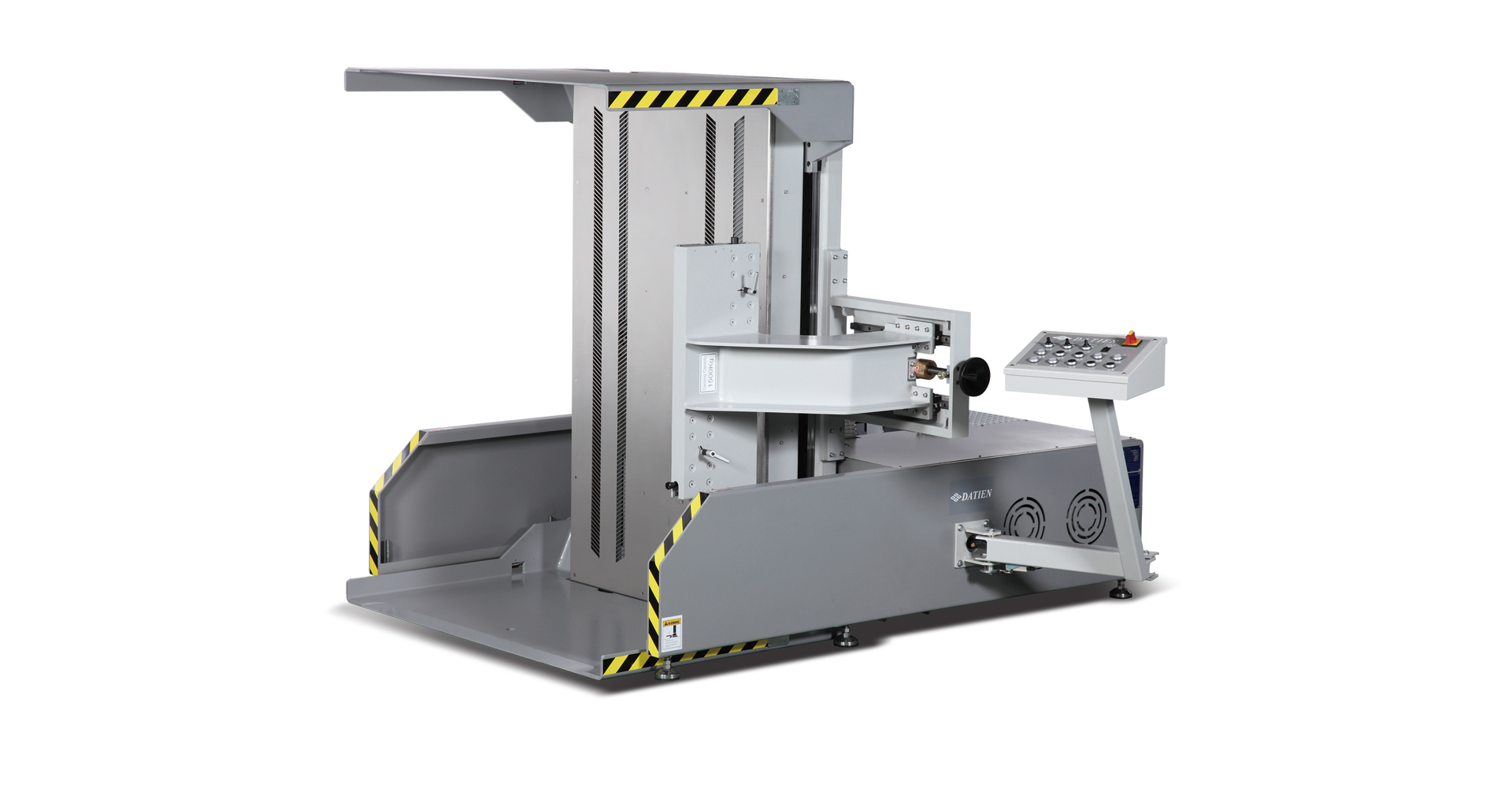

MODEL	DPTJ-125A/140R	DPTJ-125A/180R	DPTJ-145A/200R	DPTJ-165A/200R
Maximum loading area	90 x 125 cm	90 x 125 cm	110 x 145 cm	165 x 125 cm

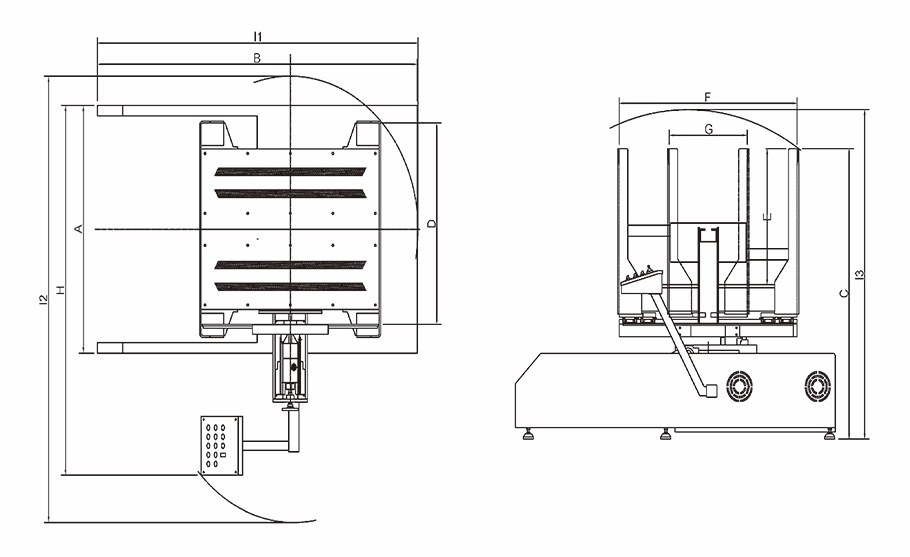

A Machine Width	164 cm	164 cm	188 cm	212 cm
B Machine Length	210 cm	254 cm	324 cm	344 cm
C Machine Height	192 cm	192 cm	232 cm	248 cm
D Clip table width	130 cm	130 cm	155 cm	180 cm
E Clip table length	90 cm	90 cm	110 cm	125 cm
F Maximum paper clamping height ( with two pallets )	140 cm	180 cm	200 cm	200 cm
G Minimum paper clamping height ( with two pallets )	62 cm	85 cm	90 cm	90 cm
H The total width of the machine with the console	245 cm	245 cm	269 cm	293 cm
I Machine operation requirements ( length x width x height )	226 x 195 x 200 cm	290 x 310 x 245 cm	333 x 407 x 282 cm	362 x 428 x 295 cm
Maximum horsepower	10.5 kw ( 14 hp )	10.5 kw ( 14 hp )	19.5 kw ( 26 hp )	19.5 kw ( 26 hp )
Total machine weight	2070 kg	2990 kg	4300 kg	5340 kg
Maximum load weight	1000 Kg	1500 Kg	2000 kg	2000 kg
