| MODEL | DUL-125L / DUL-125R | DUL-125XL / DUL-125XR | DUL-145L / DUL-145R | DUL-145XL / DUL-145R | |
|---|---|---|---|---|---|

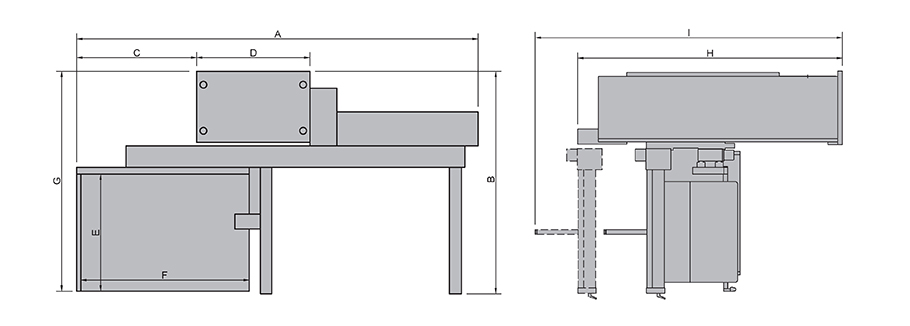

| A ( cm / inch ) | 300 ( 116 1/8 ) | 305 (120 ) | 409 ( 161 ) | 450 ( 177 1/8 ) | |
| B ( cm / inch ) | 165 ( 64 15/16 ) | 165 ( 64 15/16 ) | 220 ( 86 5/8 ) | 240 ( 94 1/2 ) | |
| C ( cm / inch ) | 90 ( 35 1/2 ) | 96 ( 37 1/8 ) | 143 ( 56 5/16 ) | 163 ( 54 1/8 ) | |
| D ( cm / inch ) | 84 ( 33 ) | 84 ( 33 ) | 107 ( 42 1/8 ) | 107 ( 42 1/8 ) | |
| E ( cm / inch ) | 87 ( 34 1/2 ) | 102 ( 40 1/8 ) | 112 ( 44 1/8 ) | 132 ( 42 ) | |
| F ( cm / inch ) | 130 ( 51 1/6 ) | 125 ( 49 1/4 ) | 190 ( 74 13/16 ) | 210 ( 82 5/8 ) | |
| G ( cm / inch ) | 164 ( 64 9/16 ) | 178 ( 70 1/16 ) | 226 ( 89 ) | 246 ( 96 5/8 ) | |
| H ( cm / inch ) | 200 ( 78 3/4 ) | 200 ( 78 3/4 ) | 235 ( 92 1/2 ) | 235 ( 92 1/2 ) | |
| I ( cm / inch ) | 230 ( 90 1/2 ) | 230 ( 90 1/2 ) | 265 ( 104 3/8 ) | 265 ( 104 3/8 ) | |
| Stack paper size | Maximum ( cm / inch ) | 80 x 125 ( 31 1/2 x 49 1/4 ) | 95 x 125 ( 37 3/8 x 49 1/4 ) | 105 x 150 ( 41 5/16 x 59 ) | 125 x 170 ( 49 1/8 x 67 ) |
| Minimum ( cm / inch ) | 80 x 40 ( 31 1/2 x 15 3/4 ) | 95 x 40 ( 37 3/8 x 15 3/4 ) | 105 x 40 ( 41 5/16 x 15 3/4 ) | 125 x 40 ( 49 1/8 x 15 3/4 ) | |
| Maximum height of single stack, the stack of paper | 16.5 ( 6 1/2 ) | 16.5 ( 6 1/2 ) | 16.5 ( 6 1/2 ) | 16.5 ( 6 1/2 ) | |
| Stack height | Maximum ( cm / inch ) | 130 ( 51 3/16 ) | 130 ( 51 3/16 ) | 160 ( 63 ) | 180 ( 70 7/8 ) |
| Minimum ( cm / inch ) | 10 ( 3 15/16 ) | 10 ( 3 15/16 ) | 18 ( 7 1/16 ) | 18 ( 7 1/16 ) | |
| The largest single stack load Kg / lb | 200 ( 440 ) | 200 ( 440 ) | 300 ( 660 ) | 350 ( 670 ) | |
| Machine weight | 1150 kg | 1150 kg | 2200 kg | 2600 kg | |
| Electric power | 2.3 Kw ( 3.1 Hp ) | 2.3 Kw ( 3.1 Hp ) | 4.5 Kw ( 6 Hp ) | 5 Kw ( 6.7 Hp ) | |
| Machine Height ( cm / inch ) | 188 ( 74 ) | 188 ( 74 ) | 262 ( 103 1/8 ) | 262 ( 103 1/8 ) | |
※ Specifi cation could be changed for improvement without prior notice.

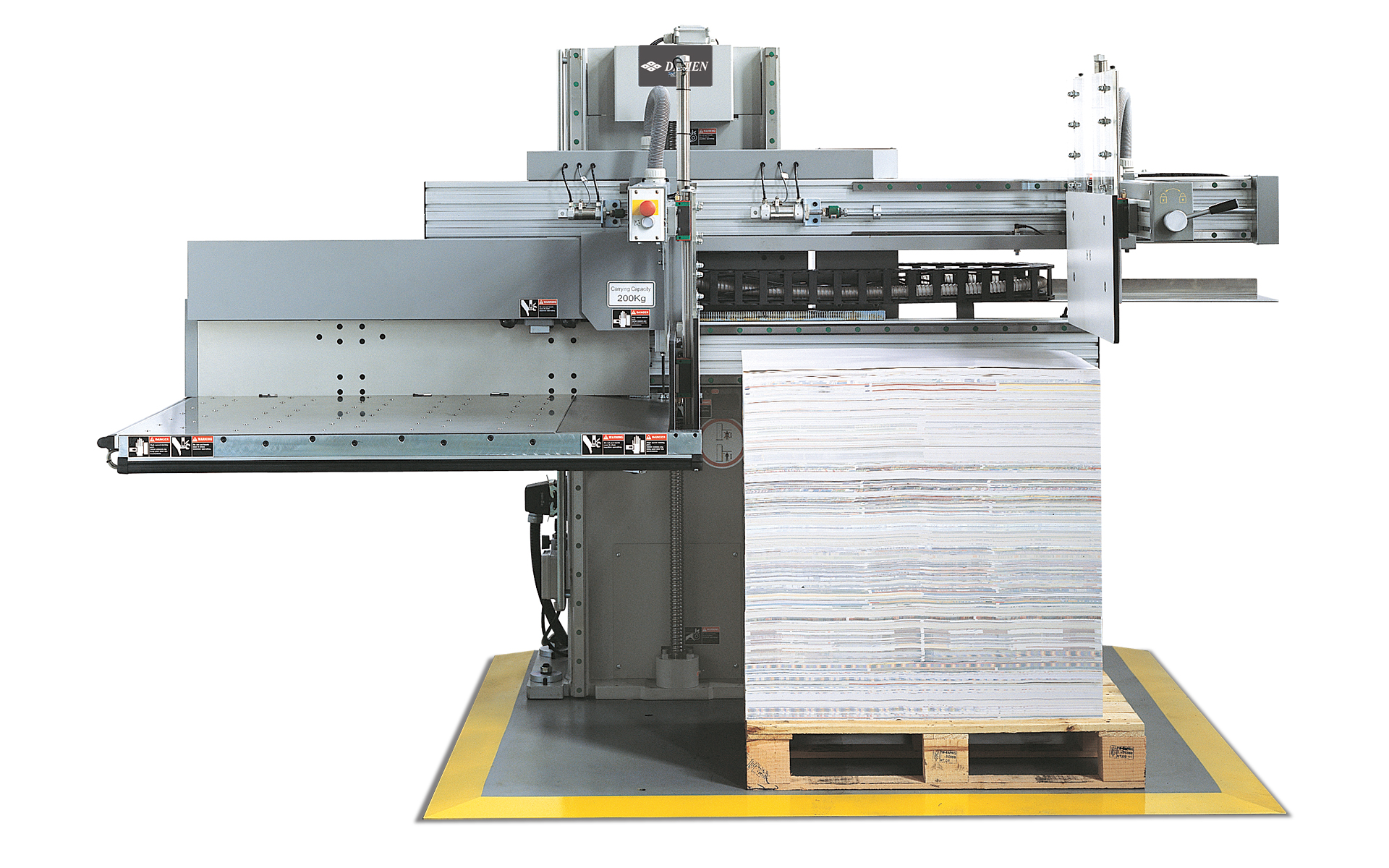

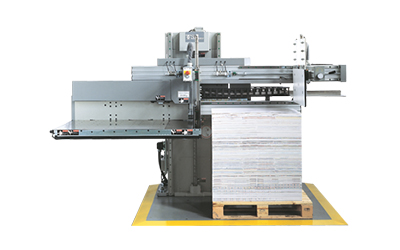

DATIEN Paper Cutting System with UNLOADER is to give ideally smooth workflows for
Printing company, Silk-screen printers, Label producers, Bookbinderies and Converters.
Finished Stock can be delivered to Printing Press directly or finishing or packing from
UNLOADER,to save one hand-pass time, to protect workers for health and safe.
